High Falls Passive House

This certified Passive House overcomes the challenge of a northwest view while still achieving exceptional performance.

Overview.  The owners wanted a home where multiple generations could relax, mingle, and appreciate the beautiful northwest views of the Catskill Mountains.

Form.  Designed by Wendy Ing, the compact form helps to reduce the heat loss from the building envelope (the two-story house was designed with a rectangular shape). The angle and line of the roof, which faces due south, was designed to maximize solar exposure for the 6.3kW photovoltaic system. Large windows face northwest for the mountainous views, while on  the south-facing façade additional large windows supply most of the heat.

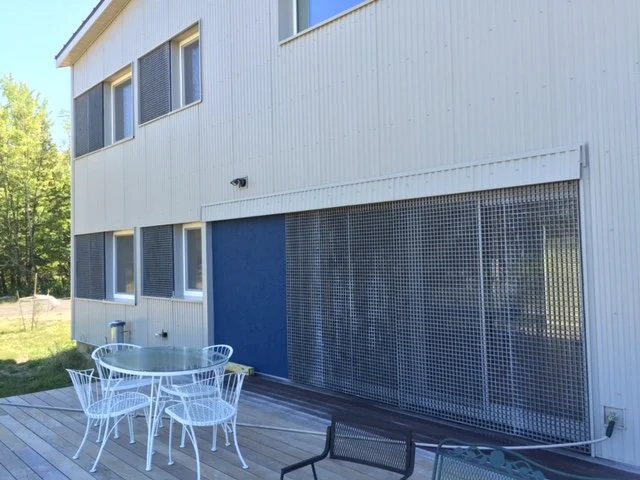

Systems.  Mini-split heat pumps suppliment the home's passive solar gain in the winter, and provide cooling in the summer. Sliding shutters on the southeast and southwest facing windows reduce summer solar heat gains. A separately ducted heat-recovery ventilator (HRV) provides continuous fresh air.

Envelope.  The wall assembly is a combination of Insulated concrete forms (ICFs) and interior 2x4 stud walls filled with dense-packed cellulose. The roof incorporates 20 inches of loose fill cellulose insulation in the trusses. The airtightness membrane spans the interior of the roof trusses and hangs into the top of the ICF walls where the concrete was poured to creating an uninterrupted air barrier.







SERVICES: CONSULTING PROJECT

- PaSsive House Consulting

- Mechanical Design

CERTIFICATION

Certified Passive House

PERFORMANCE DATA

pEUI: 12.5kBtu/sf/yr
Air Leakage: 0.45ACH50
Better Than Code: 76%
Heating Energy 4.01 kBTU/ft²/yr
Cooling Energy 1.68 kBTU/ft²/yr
Heating Load 4.94 kBTU/ft²/hr
Source Energy 28.2 kBTU/ft²/yr)
Air Tightness 0.45 ACH50


CONSTRUCTION

Walls/Roof
2x4 Stud & ICF walls
Truss roof
Windows/Doors
U Value:
Insulation
Loose fill cellulose, EPS


MECHANICAL

Heating/Cooling
Ducted air source heat pump
Ventilation
HRV
Hot Water
Heat pump hot water heater

TEAM

Wendy Ing
Architectural Design & Photos
ZeroEnergy Design
Passive House Consultant
Mechanical Designer
